TORR RF
Model: MTX-C1
Innovative Multi-Wave RF Workstation
The core clinical significance of TORR RF lies in its ability to deliver powerful yet safe energy uniformly to the desired depth using low power, preventing surface burns while maximizing deep tissue heating. FDA 510(k) cleared (K212561) and designed for skin tightening, body contouring, and pain relief.
Certifications
Key Technologies
Innovative technologies powering TORR RF's exceptional performance.
Auto Circular Motion Head (Patented)
The handpiece features a head that automatically rotates (68 rpm), creating a 'Toroidal' thermal field ensuring RF energy is distributed uniformly without hot spots and reducing operator fatigue.
Real-Time Temperature Control
Integrated sensors monitor skin temperature continuously. The system automatically cuts off RF output if temperature exceeds the set safety limit (adjustable 30°C–50°C), preventing burns.
Vibro-Comfort Mode
3D vibration technology (10,000 times/min) mitigates the sensation of heat through neurological distraction (Gate Control Theory), making treatments comfortable for patients sensitive to heat.
Indications
Cleared and approved applications for TORR RF.
Lifting & Skin Tightening
Delivers thermal energy to the deep dermis to stimulate collagen remodeling
Body Contouring & Cellulite
FDA-cleared for temporary reduction in the appearance of cellulite
Vascular (Circulation)
Cleared for temporary improvement of local blood circulation
Pain Management
Relief of minor muscle aches, pains, and muscle spasms
Specifications
| Frequency | 1 MHz ± 10% Stable deep heating frequency |
| Max Output Power | 55W (Medium/Large), 7.5W (Small) Low power, high efficiency |
| Operation Modes | Single / Pulse / Repeat Selectable via GUI |
| Treatment Depth | 1.5mm ~ 10mm Adjustable Low/Deep Mode |
| Temperature Control | 30°C ~ 50°C Real-time monitoring & Auto-cut off |

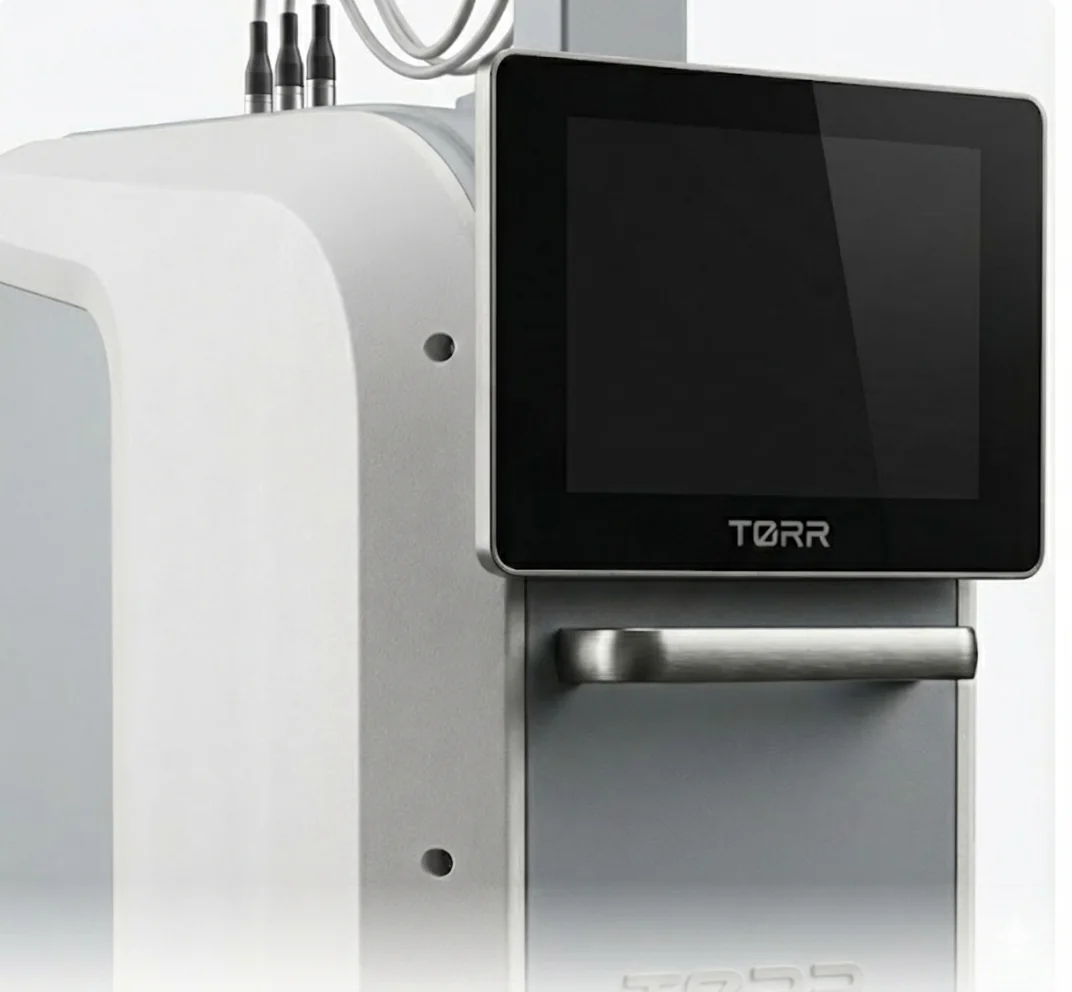

| User Interface | 10.1" TFT LCD Touch Screen Intuitive GUI with Preset Memory |
| Dimensions | 338.1mm (W) × 643mm (D) × 857.5mm (H) |
| Weight | 36 kg |
| Power | 100-240 VAC, 50/60 Hz, 200 VA |
| Safety Class | Class I, Type BF Applied Part |

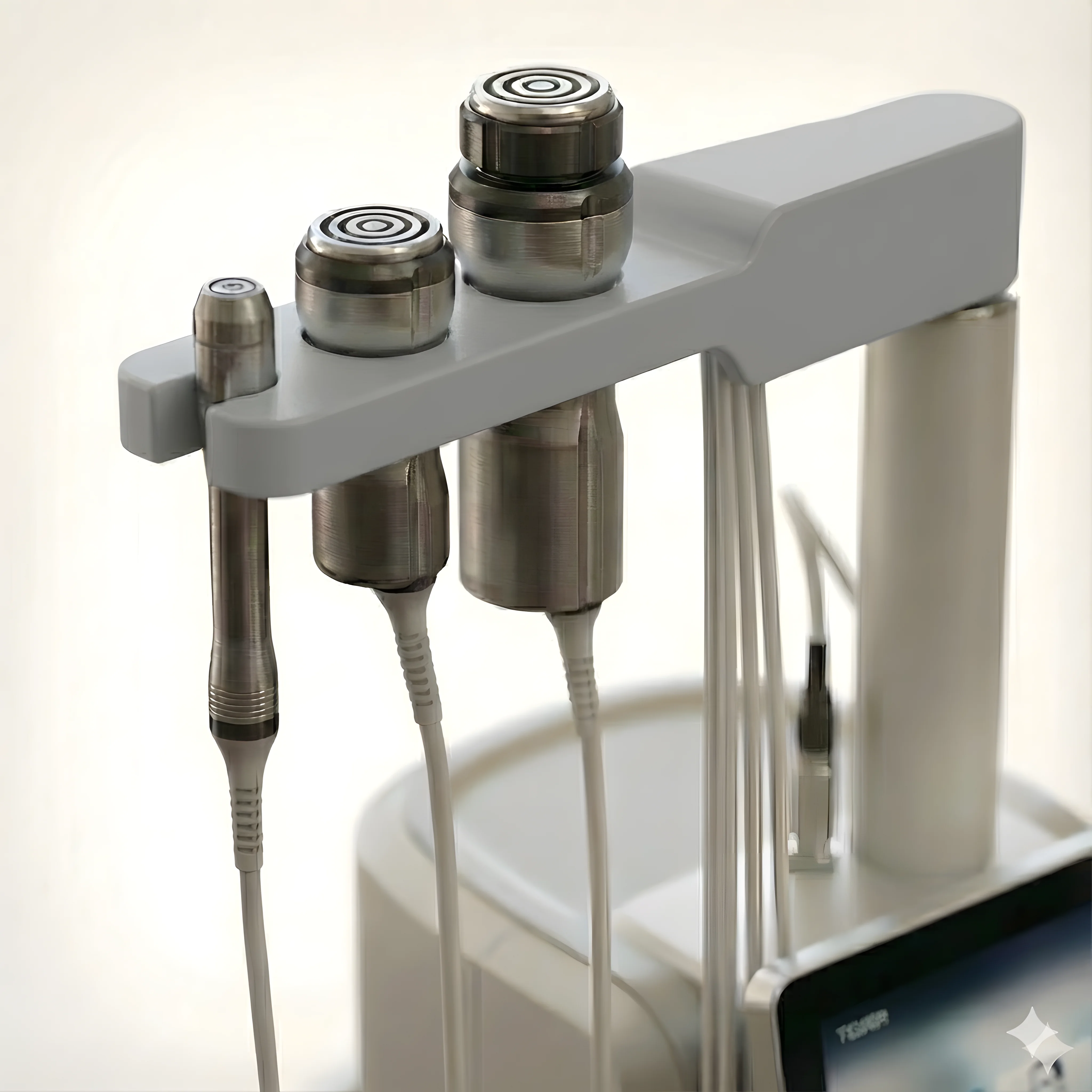

Handpiece Configuration
Specialized handpieces tailored for different anatomical areas and treatment depths.
Large Handpiece (Body)
Auto-Circular Motion (68 rpm) for large area contouring

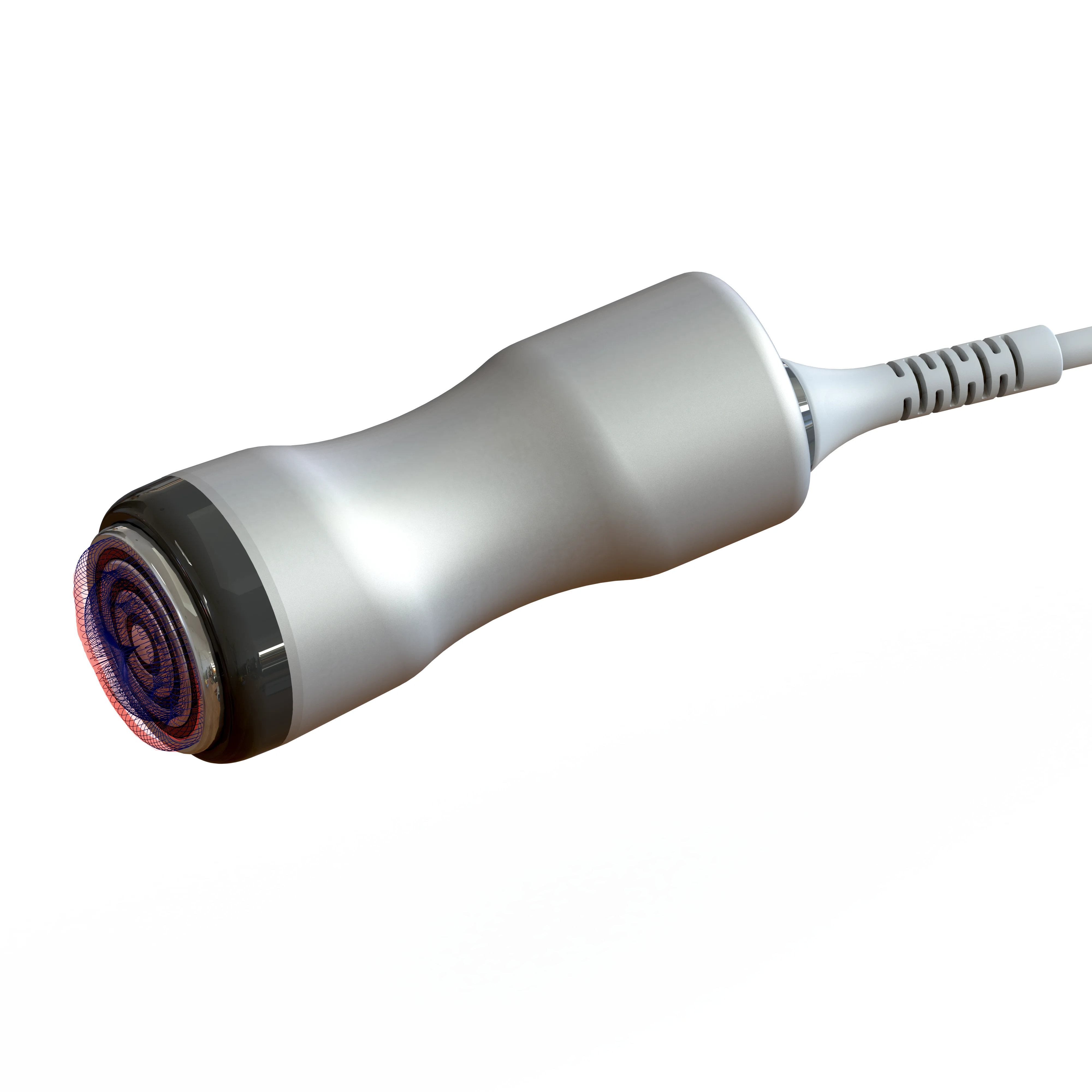

Small Handpiece (Face)
Designed for facial tightening and cheek contouring

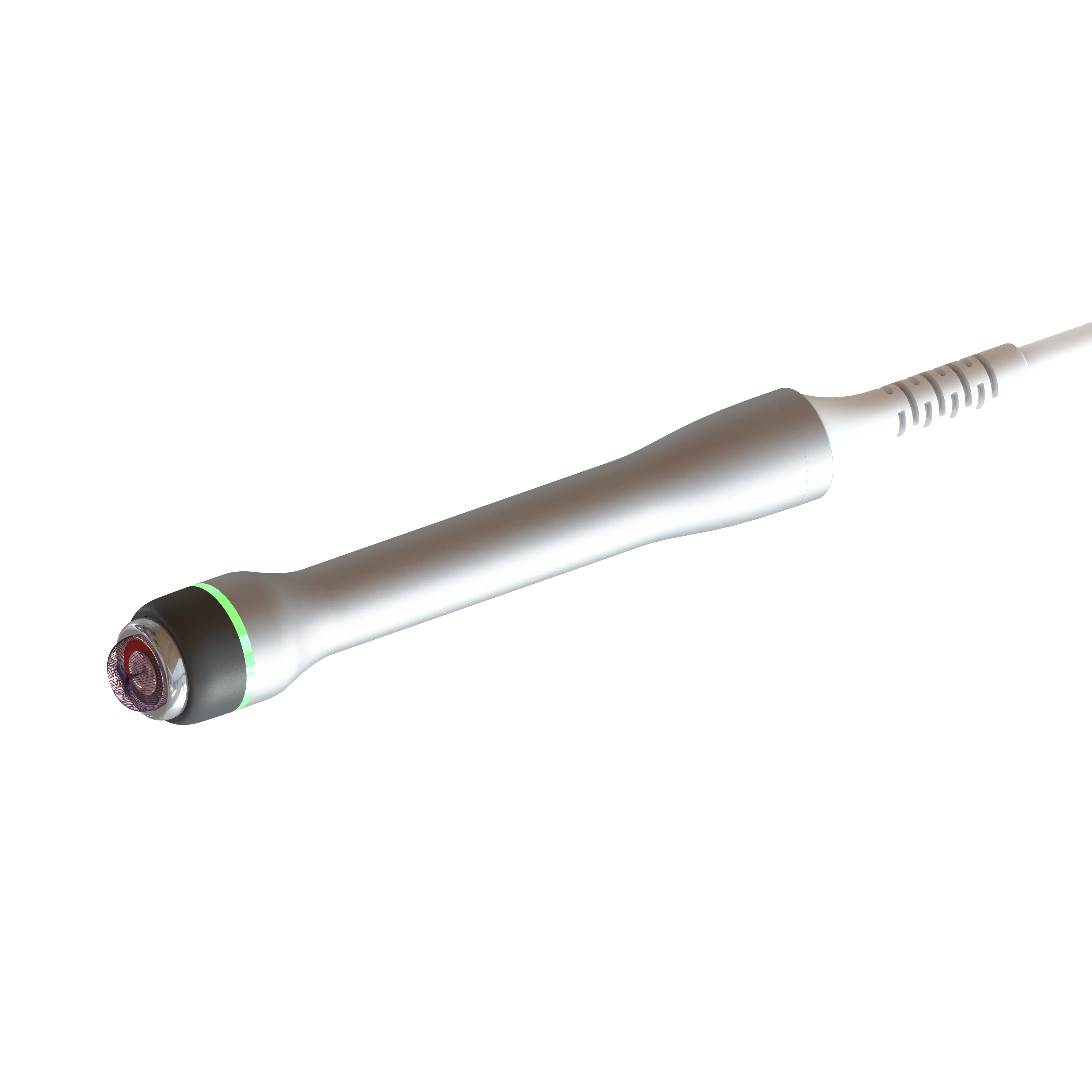

Micro Handpiece (Eye/Delicate)
Precision care for periorbital areas and wrinkles
Clinical Benefits
Why clinicians choose TORR RF for their practice.
Auto-Motion Technology
Unlike traditional stationary applicators, the rotating head (68 rpm) ensures uniform energy distribution across large treatment areas
Lower Power, Higher Efficacy
Achieves effective heating with 55W compared to competitors requiring up to 150W, enhancing safety
Non-Consumable Handpieces
Durable handpieces designed for long-term use without expensive cartridge replacements
Interested in TORR RF?
Contact our sales team for pricing, demo scheduling, or technical questions.
